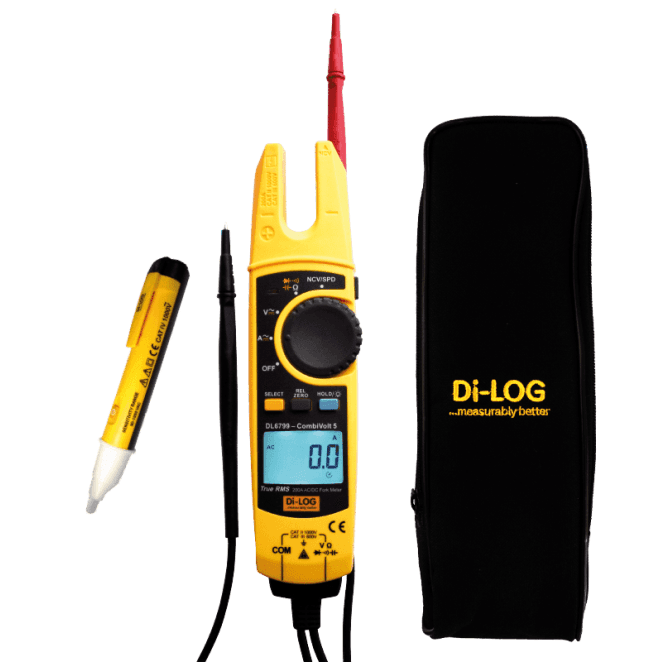

Di-Log DL6799 Combivolt 5-1 Tester

Di-LOG CombiVolt 5 – The Ultimate 5-in-1 Tester for Electrical Engineers

Introducing the NEW Di-LOG CombiVolt 5, a versatile five-in-one tester that combines multiple essential testing functions into one rugged, ergonomically designed device. With the ability to measure TRMS AC/DC voltage and current, non-contact voltage detection, and much more, the CombiVolt 5 is the ideal tool for electrical engineers looking for flexibility and efficiency. Built for ease of use and durability, it meets the safety and performance requirements of BS EN 61010-1, making it perfect for any professional environment.

Key Features:

• TRMS AC/DC Voltage & Current Measurement:
  Measure up to 750V TRMS AC and 1000V DC for voltage testing, and 200A TRMS AC/DC current, ensuring accurate and reliable measurements across a variety of applications.

• Single Pole Voltage Detection:
  Quickly and easily identify live conductors with single pole voltage indication, perfect for fast troubleshooting

• Non-Contact Voltage Detector:
  Safely detect voltage presence without contact, ensuring maximum safety during testing.

• 60M Ohm Resistance with Audible Continuity:
  Measure resistance up to 60M Ohms with the added convenience of audible continuity testing, making it easy to identify broken circuits or connections.

• Capacitance Measurement:
  Perform accurate capacitance measurements for diagnosing capacitor performance in circuits.

• Ergonomic Design & GS38 Shrouded Probe Tips:
  The tester is built with rugged, ergonomic housing for comfortable handling, and includes GS38-compliant shrouded probe tips for added safety.

• Bright LED Flashlight:
  Work in low-light environments with the built-in bright LED flashlight, ensuring clear visibility while testing.

• FREE Carry Case & Voltage Indicator:
  The CombiVolt 5 comes with a FREE carry case and a FREE PL107N Voltage Indicator, providing you with the ultimate testing kit for any job.

Why Choose the Di-LOG CombiVolt 5?

• Complete Versatility for Electrical Testing:
  With its five-in-one functionality, the CombiVolt 5 covers a wide range of testing needs, including TRMS AC/DC voltage and current, non-contact voltage detection, single pole voltage detection, resistance, capacitance, and more.

• Rugged & Ergonomically Designed:
  Built to withstand tough environments, the CombiVolt 5 features a rugged housing and ergonomic design that ensures comfortable handling, making it ideal for both daily use and challenging job sites.

• Safety Compliance:
  The CombiVolt 5 is fully compliant with BS EN 61010-1, BS EN 61010-2-032, CAT II 1000V, and CAT III 600V, ensuring it meets the highest safety standards for professional use.

• Additional Free Tools:
  With the inclusion of a FREE PL107N Voltage Indicator and a FREE carry case, the CombiVolt 5 offers great value, providing you with everything you need to complete testing safely and efficiently.

What’s In the Box:

• 1 x CombiVolt 5 Five-in-One Tester

• 1 x PL107N Voltage Indicator

• 1 x Carry Case

• 1 x Set of Test Leads

• 1 x User Manual

The Ultimate Multifunction Tester for Electrical Professionals

The Di-LOG CombiVolt 5 is an all-in-one solution for electrical engineers and service technicians, offering TRMS AC/DC voltage and current testing, resistance, capacitance, and much more. Built for convenience, safety, and efficiency, the CombiVolt 5 is a must-have for any professional working with electrical systems.

Ready to Elevate Your Testing Capabilities?

Click "Buy Now" and add the Di-LOG CombiVolt 5 to your toolkit for versatile, accurate, and safe electrical testing.

Measurement Specifications:

• AC Voltage (True RMS): 0-750V AC
• Typical Accuracy: ± 1.2% + 3 digits
• Frequency: 45 - 400Hz
• DC Voltage: 0 - 1000V DC
• Typical Accuracy: ± 0.8% + 3 digits
• Single Pole Indication: >100Vrms
• Non-contact Voltage Detection: >100Vrms, distance <10mm
• AC Current: 200A
• Typical Accuracy: ± 2.5% + 5 digits
• Frequency: 50 - 60Hz
• DC Current: 200A
• Typical Accuracy: ± 1.0% + 2 digits
• Continuity: 0-600Ω, audible at <100Ω
• Resistance: 0.1Ω - 60MΩ
• Typical Accuracy: ± 1.0% + 2 digits
• Capacitance: 60.00nF - 60.00mF
• Diode Test: 6.000V

Power & Physical Specifications:

• Power Supply: 2 x 1.5V (AA) LR06 batteries
• Dimensions: 210 x 53 x 35 mm
• Weight: 164g (including batteries)
