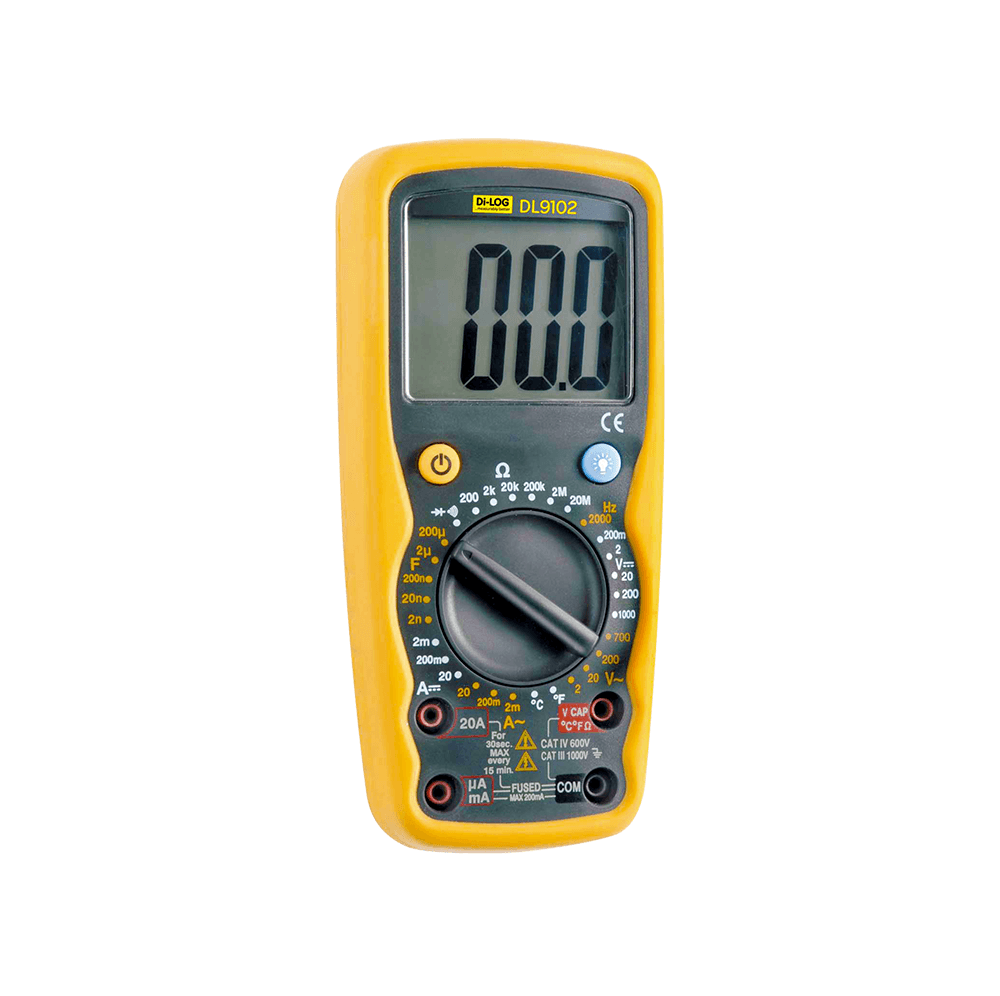

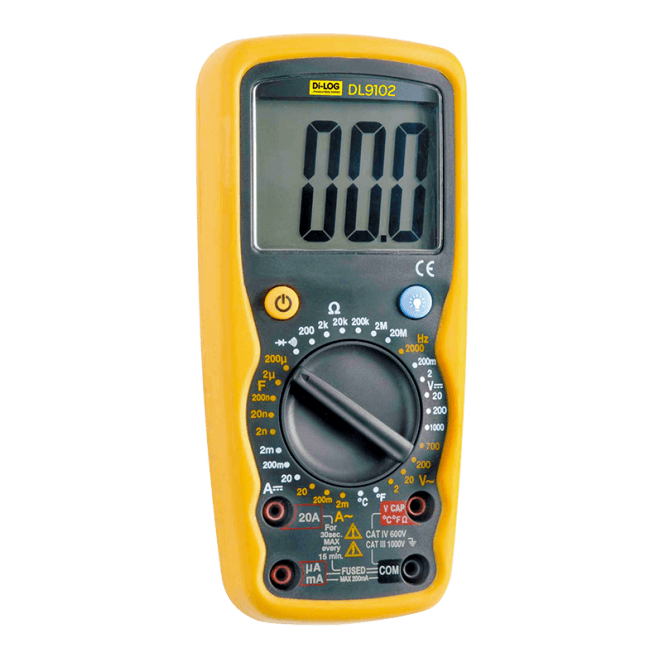

Di-Log DL9102 General Purpose Multimeter c/w Temperature

Di-LOG DL9102 General Purpose Multimeter with Temperature – Versatile & Reliable for Everyday Use

The DL9102 General Purpose Multimeter is a versatile, manual ranging multimeter that offers precision and reliability for everyday electrical testing tasks. Housed in a double-moulded casing with an oversized, high-contrast 2000 count LCD display, the DL9102 ensures easy readability and durability for long-lasting performance. Whether you’re measuring current, temperature, or frequency, this general-purpose multimeter is designed to meet the needs of professionals and DIY enthusiasts alike. Equipped with full range protection and a temperature probe, the DL9102 is an excellent choice for those seeking accuracy, safety, and convenience in one package.

Key Features:

• Large LCD Display for Easy Readability:
  The DL9102 features a large, 2000 count LCD display with backlighting, making it easy to read measurements even in low-light conditions.

• Manual Ranging with Current Range Up to 20A:
  Offering manual range selection, the DL9102 gives users precise control over their measurements, supporting current readings up to 20A.

• Temperature Measurement:
  The DL9102 comes complete with a temperature probe, allowing for accurate temperature testing, making it a versatile tool for various applications.

• Auto Power Off:
  To conserve battery life, the multimeter automatically powers off after a period of inactivity, ensuring extended use without frequent battery changes.

• Full Range Protection:
  Built with full range protection, the DL9102 safeguards both the instrument and the user from electrical damage, providing added safety in demanding testing environments.

• Backlit LCD Display:
  The backlit display ensures clear visibility, even in dimly lit or challenging conditions, making it easier to work in any environment.

Why Choose the DL9102 General Purpose Multimeter?

• Versatile for Everyday Use:
  With the ability to measure current, temperature, and frequency, the DL9102 is ideal for a wide range of electrical testing tasks, from general maintenance to specific diagnostic work.

• Durable Design:
  The double-moulded housing offers extra protection, ensuring that the multimeter withstands rough handling in industrial or field environments.

• High Accuracy & Safety:
  With full range protection and manual ranging, the DL9102 ensures precise measurements and protects both the user and the device from damage.

What’s In the Box:

• 1 x DL9102 General Purpose Multimeter

• 1 x Temperature Probe

• 1 x Set of Test Leads

• 1 x User Manual

Precision & Versatility in One Multimeter

The Di-LOG DL9102 General Purpose Multimeter is the ideal tool for electrical engineers, technicians, and DIY enthusiasts alike. With its wide range of functions, including manual ranging, current and temperature measurements, and a large backlit display, it’s the perfect all-round tool for reliable and accurate testing.

Looking for a Reliable, All-Purpose Multimeter?

Click "Buy Now" to add the DL9102 to your toolkit and ensure precise and safe testing every time!

Measurement Specifications:

• AC Voltage: 1.0 mV – 700 V
• Accuracy: ± 1.0% + 3 digits
• DC Voltage: 0.1 mV – 1000 V
• Accuracy: ± 0.5% + 2 digits
• AC Current: 1 µA – 20 A
• Accuracy: ± 2.0% + 3 digits
• DC Current: 1 µA – 20 A
• Accuracy: ± 1.5% + 3 digits
• Continuity: Audible threshold > 50 Ω
• Resistance: 0.1 Ω – 20 MΩ
• Accuracy: ± 1.2% + 2 digits
• Capacitance: 1 pF – 200 µF
• Accuracy: ± 4.0% + 3 digits
• Frequency: 1 Hz – 10 MHz
• Accuracy: ± 1.2% + 3 digits
• Temperature: -20°C to 760°C
• Accuracy: ± 3.0% reading + 5°C
• Diode Test: 1 mA typical, 2.8 V DC

Power & Physical Specifications:

• Power Supply: 1 x 9V battery
• Dimensions: 182 x 82 x 55 mm
• Weight: 360 g
