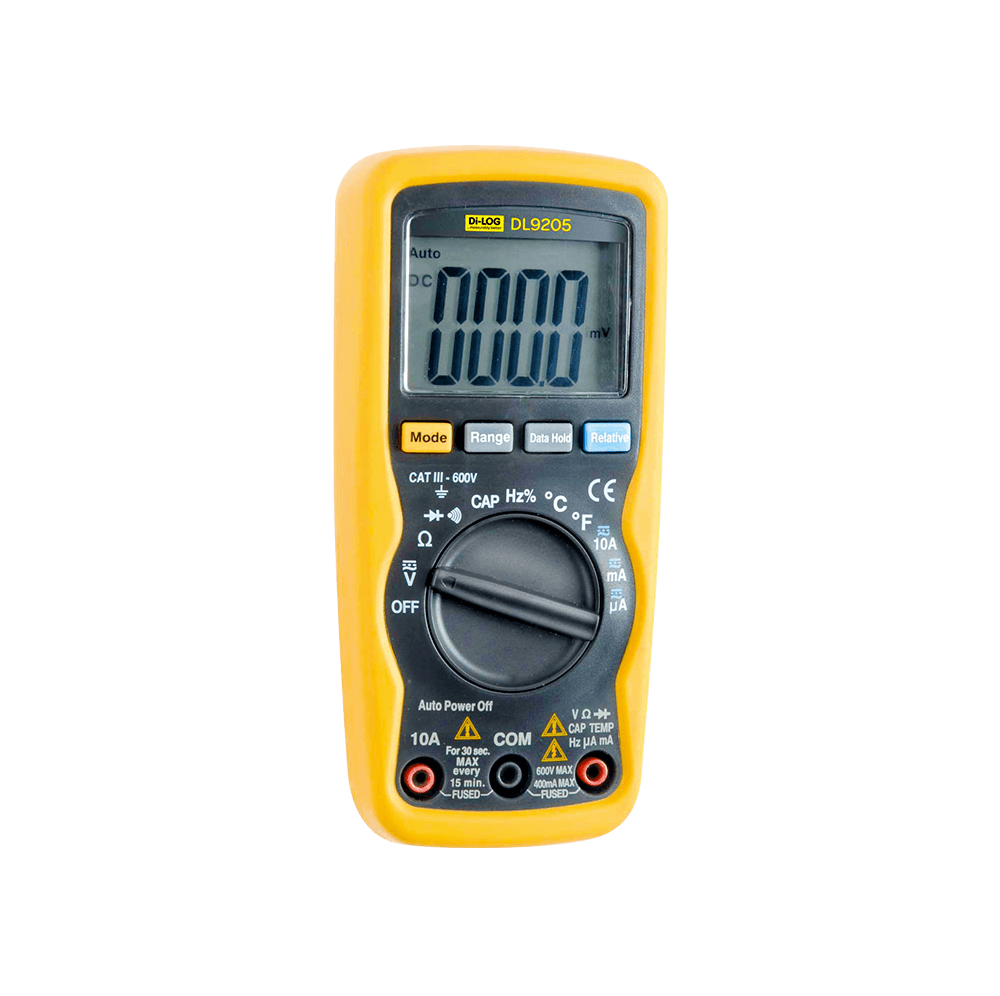

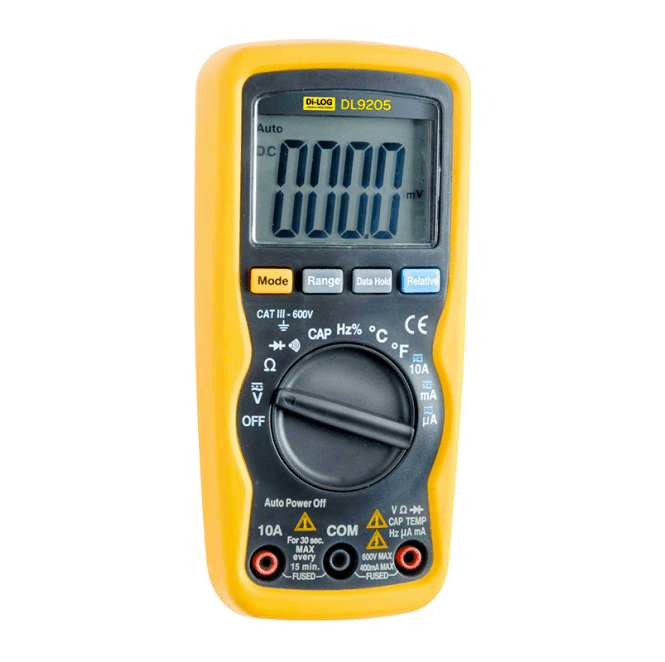

Di-LOG DL9205 Compact Auto Ranging 600V Digital Multimeter – Precision & Durability in a Compact Form

The DL9205 Compact Auto Ranging Multimeter is one of Di-LOG’s best-selling compact multimeters, offering accuracy, durability, and convenience for a variety of electrical testing tasks. Built with a double-moulded rubber and plastic housing, this multimeter is tough enough for daily use, while its 4000 count LCD display ensures easy readability, even in challenging environments. Featuring full range protection and a CAT III 600V safety rating, the DL9205 is a go-to choice for electrical engineers who demand reliability and performance in a compact package.

Key Features:

4000 Count Large LCD Display:
The oversized high-contrast LCD display with 4000 counts ensures that readings are clear and easy to read, making this multimeter perfect for both indoor and outdoor work environments.

Full Range Protection:
With full range protection on all measurement ranges, the DL9205 ensures safe operation and guards against accidental damage during testing.

Capacitance Measurement:
This multimeter offers reliable capacitance measurement, allowing engineers to test capacitors and related components with ease.

Temperature Measurement:
The DL9205 includes a temperature probe, enabling accurate temperature measurements in both Celsius and Fahrenheit, making it ideal for various applications.

Resistance Measurement up to 40MΩ:
Accurately measure resistance up to 40MΩ, offering reliable performance for diagnosing electrical components and systems.

Audible Continuity Buzzer:
The built-in continuity buzzer provides audible feedback for continuity testing, making it easier to identify circuit integrity quickly and efficiently.

Data Hold Function:
Use the data hold feature to freeze readings on the display, allowing for easier recording of results without losing the displayed value.

Auto Power Off:
To conserve battery life, the DL9205 automatically powers off after a period of inactivity, ensuring extended use without frequent battery changes.

Why Choose the DL9205 Compact Auto Ranging Multimeter?

Compact & Durable Design:
Encased in a double-moulded rubber & plastic housing, the DL9205 is built for durability, ensuring it stands up to tough work environments and frequent use.

Versatile & Reliable:
With the ability to measure voltage, resistance, capacitance, and temperature, the DL9205 offers a versatile solution for a wide range of testing tasks, making it the ideal tool for both professionals and DIY users.

Enhanced Safety Features:
The DL9205 is rated CAT III 600V, ensuring safe operation in demanding electrical environments.

What’s In the Box:

1 x DL9205 Compact Auto Ranging Multimeter

1 x Set of Test Leads

1 x Temperature Probe

1 x User Manual

Accurate, Compact & Reliable

The Di-LOG DL9205 Compact Auto Ranging Multimeter delivers high accuracy and reliable performance for all your electrical testing needs. With features like full range protection, temperature measurement, and a 4000 count LCD display, this multimeter is an essential tool for electrical engineers and technicians alike.

Looking for a Versatile Multimeter?

Click "Buy Now" to add the DL9205 to your toolkit and experience top-notch testing performance in a compact, durable design!

Measurement Specifications:

AC Voltage: 1.0 mV – 600 V

Accuracy: ± 1.5% + 3 digits

DC Voltage: 0.1 mV – 600 V

Accuracy: ± 1.2% + 2 digits

AC Current: 1 mA – 10 A

Accuracy: ± 1.8% + 5 digits

DC Current: 1 mA – 10 A

Accuracy: ± 1.5% + 3 digits

Resistance: 0.1 Ω – 40 MΩ

Accuracy: ± 3.0% + 5 digits

Capacitance: 1 pF – 200 µF

Accuracy: ± 3.0% + 5 digits

Frequency: 0.001 Hz – 9.999 MHz

Accuracy: ± 1.2% + 3 digits

Temperature: -20°C to 760°C

Accuracy: ± 3.0% + 3 digits

Diode Test: 0.3 mA typical, 1.5 V DC

Power & Physical Specifications:

Power Supply: 1 x 9V PPS alkaline battery (supplied)
Dimensions: 150 x 70 x 48 mm
Weight: 255 g
