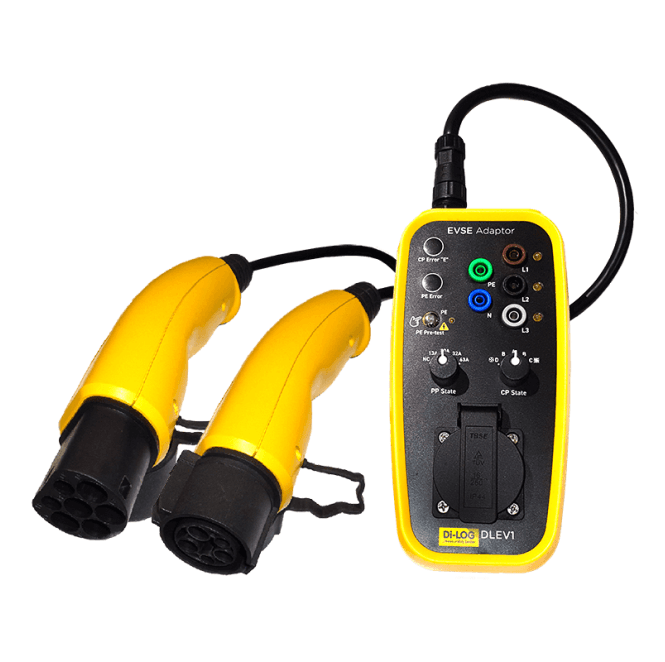

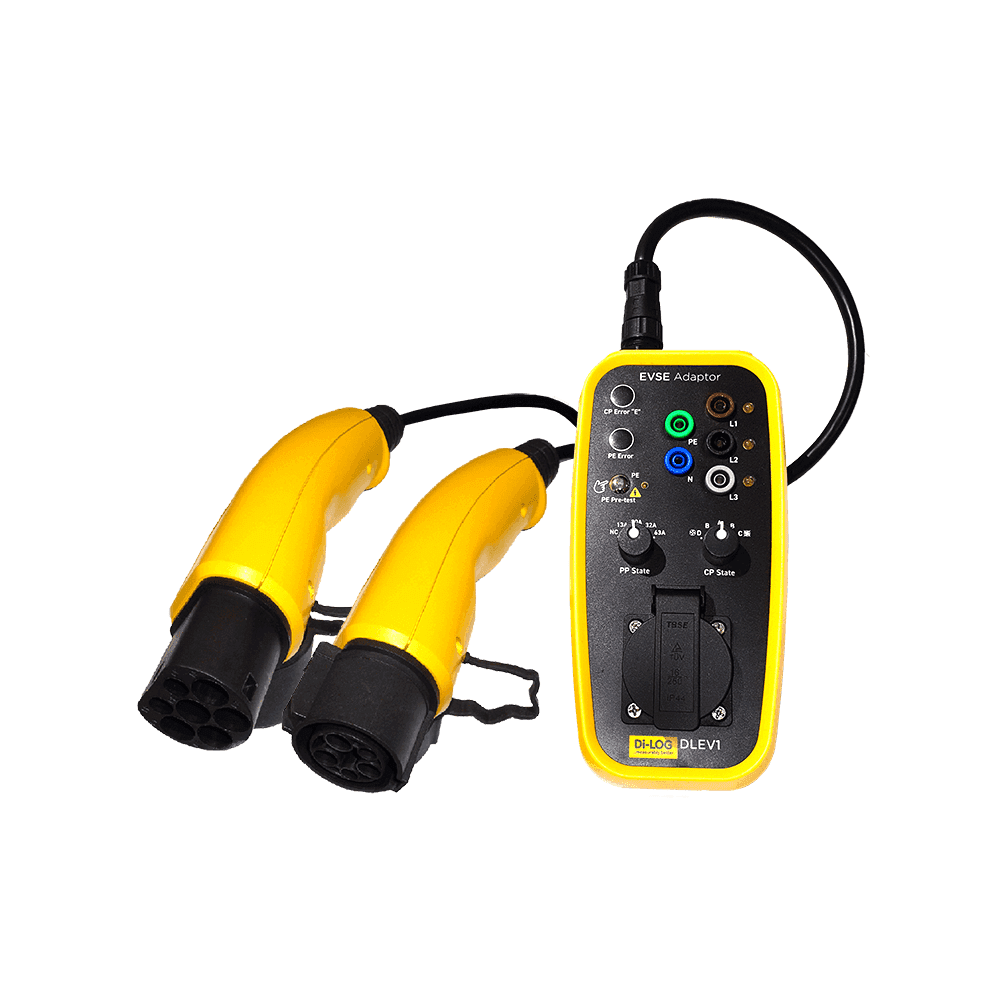

Di-Log DLEV1 EVSE Charge Station Adapter Kit

Di-LOG DLEV1 EVSE Charge Station Adaptor Kit – Universal Testing for EV Chargers

The DLEV1 EVSE Charge Station Adaptor Kit is a universal testing solution for both free-standing and wall-mounted EV charge stations. Designed to work with any Electrical Installation Multifunction Tester (MFT), the DLEV1 simulates the key Proximity Pilot (PP) and Control Pilot (CP) States, providing comprehensive verification of EV charge stations. Whether testing Type 1 or Type 2 connectors, this adaptor kit ensures that EV chargers comply with safety standards and operate effectively.

Key Features:

• Proximity Pilot (PP) & Control Pilot (CP) State Simulation:
  The DLEV1 simulates the PP states (13A, 20A, 32A, and 63A) and CP states (A, B, C, and D) required to energise both free-standing and wall-mounted EV chargers, ensuring safe and accurate testing.

• Simulates Critical Errors for EVSE Testing:
  With built-in simulations for PE Pre-test, CP Error “E”, and PE Error, the DLEV1 ensures that the EV charge station is tested under realistic fault conditions, offering a thorough safety check.

• CP Signal Output & Load Connection:
  The CP signal output and load connection features make the DLEV1 versatile for use in multiple testing scenarios, allowing you to verify communication signals from the vehicle to the charge station.

• 13A Socket for MFT Mains Lead or Inline Load Connection:
  The DLEV1 is equipped with a 13A socket for connection to an MFT mains lead or for use in inline load connections, offering flexibility depending on the test setup.

• 4mm Input Terminals for Single or 3-Phase Connections:
  For comprehensive testing, the DLEV1 includes 4mm input terminals that support both single-phase and 3-phase connections, making it suitable for a wide range of EVSE installations.

• Universal Compatibility with Multifunction Testers:
  The DLEV1 is compatible with all Electrical Installation Multifunction Testers, including the Di-LOG DL9130EV, and is also available as part of the complete DL9130EVKIT for full EV charger testing.

Why Choose the DLEV1 EVSE Charge Station Adaptor Kit?

• Comprehensive Testing for EV Chargers:
  With PP and CP state simulation, error simulation, and load connection capabilities, the DLEV1 ensures thorough and accurate testing of EV charge stations, providing peace of mind for installers and safety compliance.

• Versatile Connection Options:
  Whether using the 13A socket, inline load connection, or the 4mm terminals for single or 3-phase connections, the DLEV1 offers unparalleled flexibility for any test scenario.

• Compatible with All Multifunction Testers:
  The DLEV1 is designed to be compatible with all MFTs, including the Di-LOG DL9130EV, making it a versatile tool for any EV charger installation professional.

• Part of the Complete EV Test Kit:
  For those seeking a comprehensive solution, the DLEV1 can be purchased as part of the DL9130EVKIT, which includes all the tools needed for EV charger testing.

What’s In the Box:

• 1 x DLEV1 EVSE Charge Station Adaptor

• 1 x Type 1 Connector Plug

• 1 x Type 2 Connector Plug

• 1 x User Manual

The Essential EV Charger Testing Tool

The Di-LOG DLEV1 EVSE Charge Station Adaptor Kit is the perfect solution for service engineers and electricians who need a universal testing tool for EV charge stations. With features such as PP/CP simulation, error simulation, and universal MFT compatibility, the DLEV1 ensures that EVSE installations are safe and compliant.

Ready to Test EVSE Chargers with Confidence?

Click "Buy Now" and equip yourself with the DLEV1 EVSE Charge Station Adaptor Kit today!

Key Features:

• Universal Compatibility: Works with all electrical multifunctional installation testers.
• Proximity Pilot (PP) State: Supports NC, 13A, 20A, 32A, and 63A.
• Control Pilot (CP) State: Supports States A, B, C, and D.
• PE Pre-test: Checks for proper earth continuity.
• CP Error "E": Detects Control Pilot errors.
• PE Error: Detects Protective Earth errors.
• 13A Input: For loading or multifunction tester (MFT) connection.
• 4mm Input: For single and 3-phase chargers.
• EV Plug Compatibility: Supplied with both Type 1 and Type 2 EV plugs.

Safety Standards:

• EN 61326-2-2
• EN IEC 61326-1: 2021
• BS EN 61010-1
• BS EN 61010-2-30
• IEC 62196
